Precision Machined Parts — Real Work, Real Standards
20+ years of manufacturing excellence across aerospace, medical, automotive, electronics, and industrial sectors. Every part held to ISO 9001 quality standards.

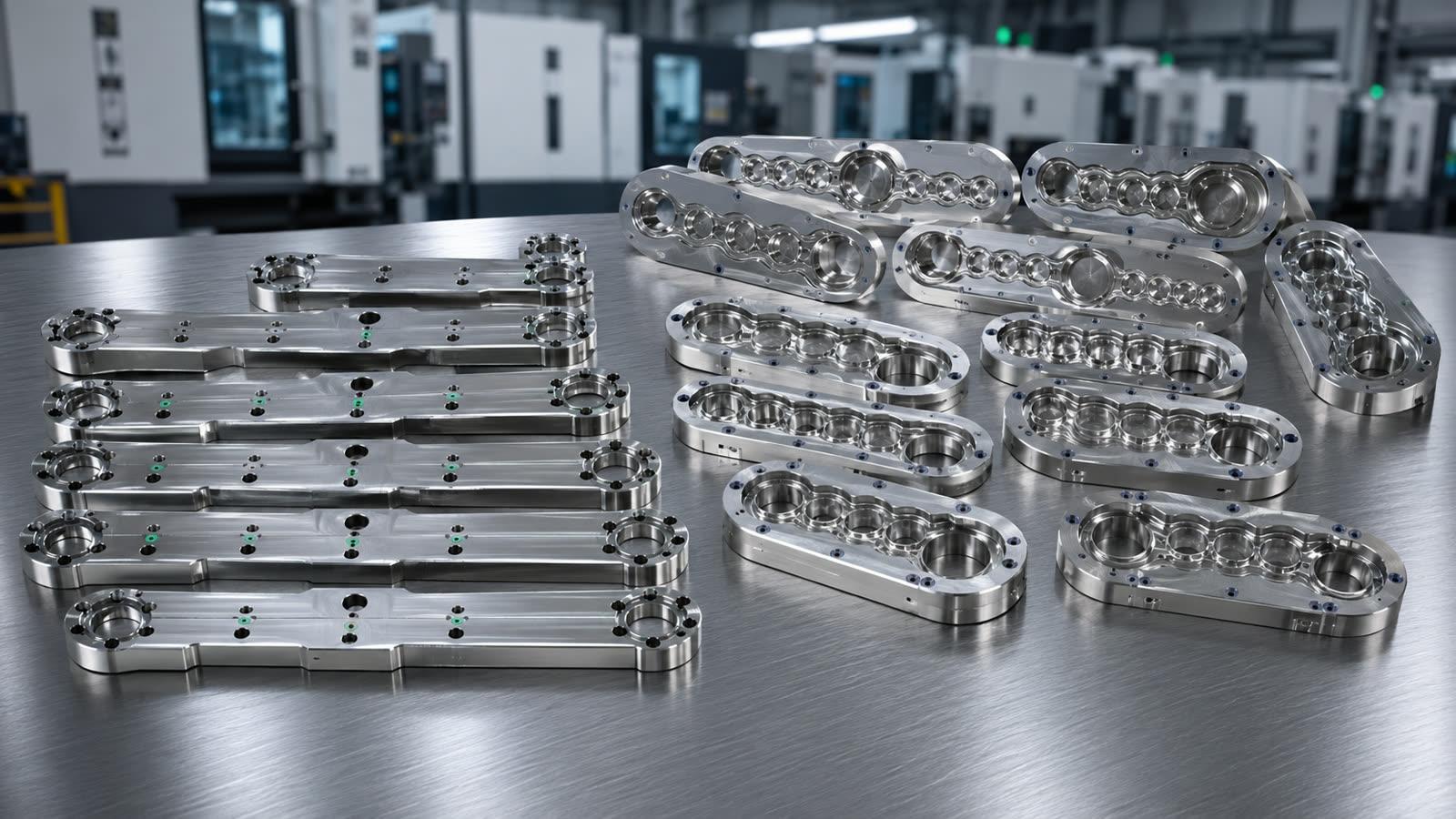

Aluminum Robot Arm Linkages — Batch of 10
Batch of 10 precision aluminum robot arm linkages — each features a 6-bolt motor flange, large drive-shaft bore, central face-milled pocket and multiple precision drilled/tapped ports. Light-weight 6061-T6 construction with consistent ±0.025 mm tolerance across the batch.

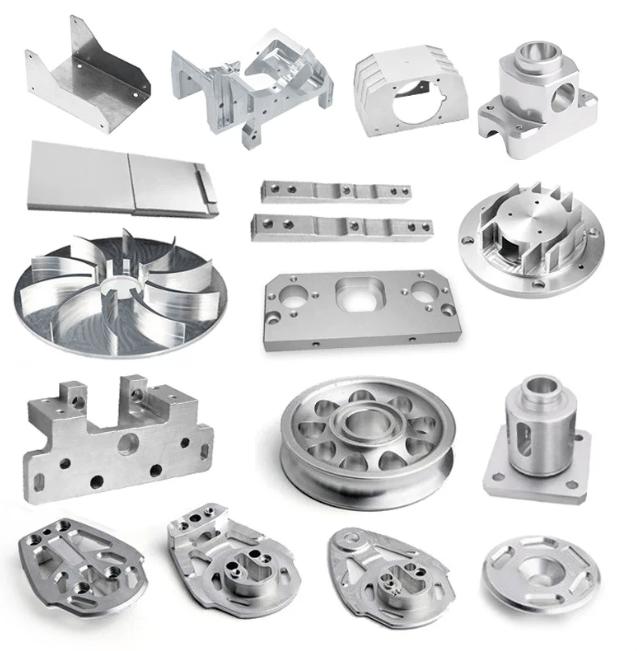

Precision CNC Machined Component 01
High-precision aluminum component machined to tight tolerance with anodized finish.

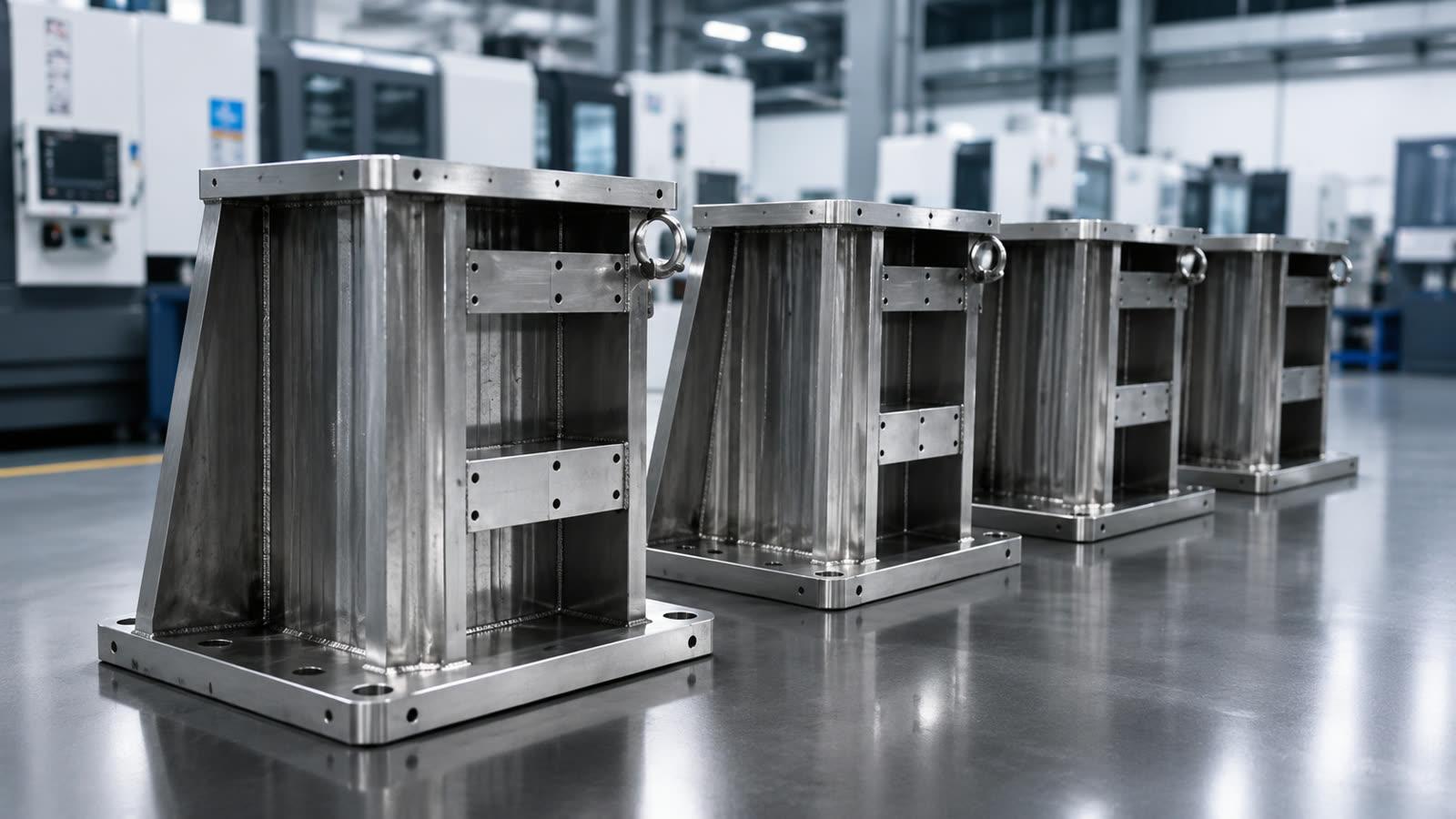

Welded Steel Machine Bases — Batch Production
Heavy-duty welded steel frame structures with CNC-machined mounting surfaces, integral lifting eyebolts and precision-bored fixture holes. Batch of 4 for an industrial automation client — used as robot pedestal mounts and heavy machinery bases. Each unit ~800 kg.

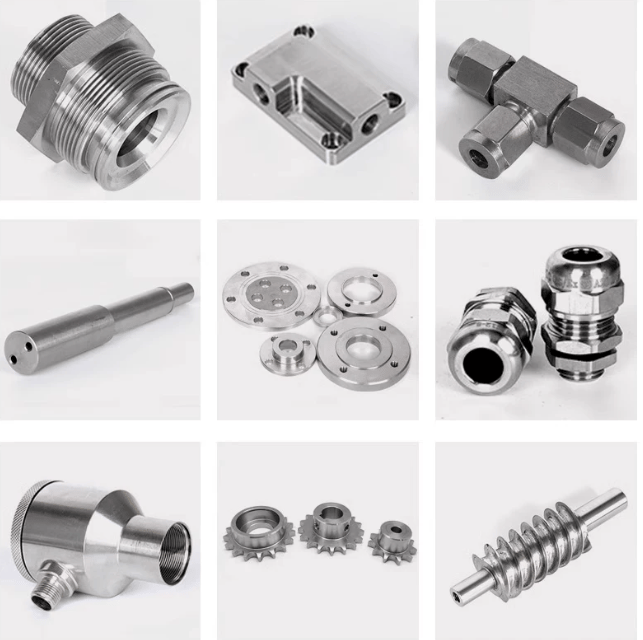

Precision CNC Machined Component 02
Precision turned stainless steel component for aerospace and industrial applications.

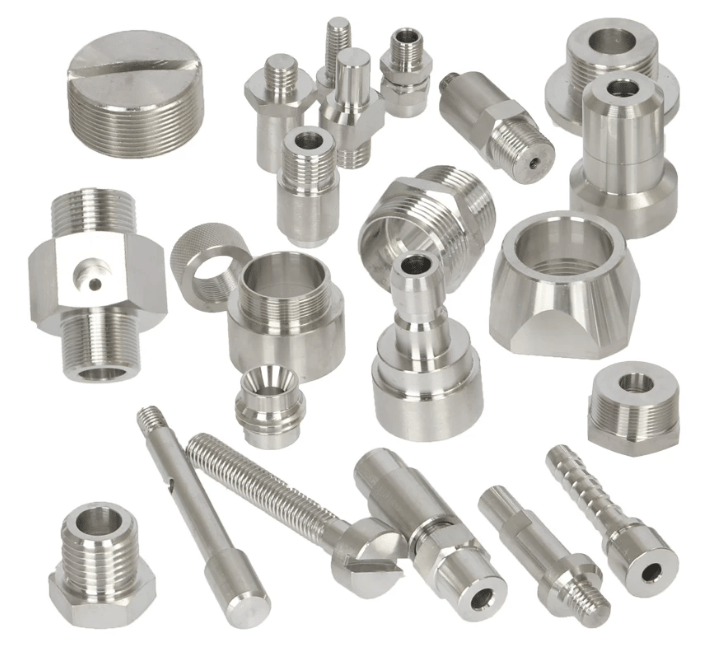

Precision CNC Machined Component 03
Complex 5-axis milled titanium part with polished surface finish for medical-grade use.

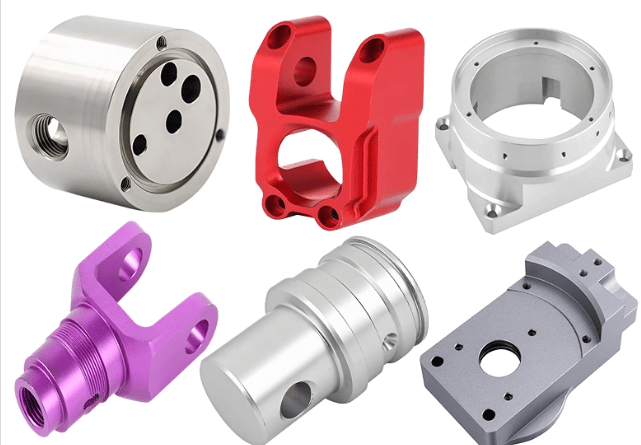

Precision CNC Machined Component 04
7075 aluminum aerospace-grade component with Type II anodized finish.

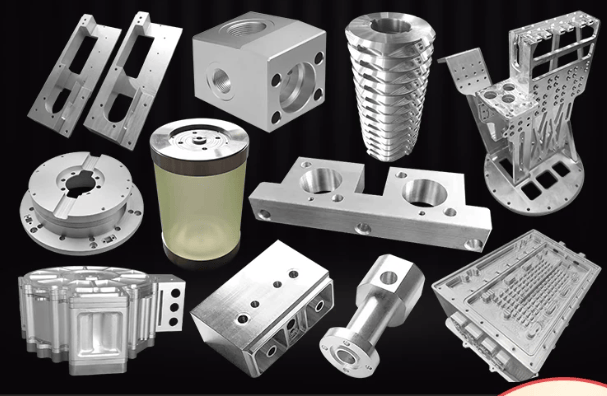

Precision CNC Machined Component 05
Precision brass turned part for electronic and connector applications.

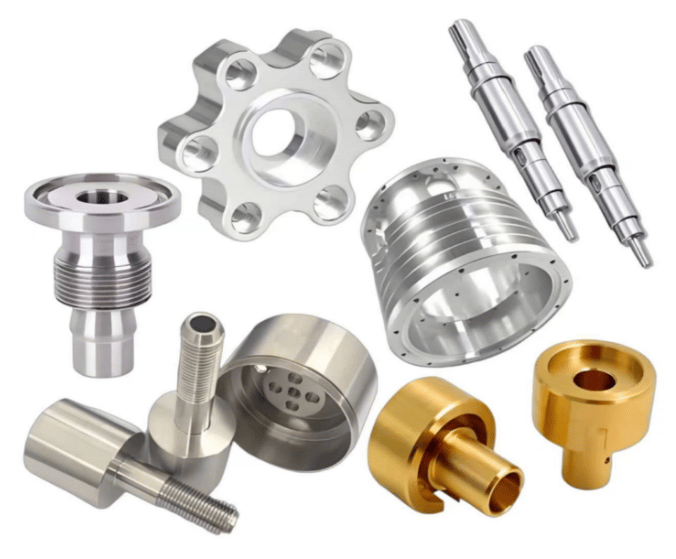

Precision CNC Machined Component 06
316L medical-grade stainless component, electropolished to Ra 0.4 µm.

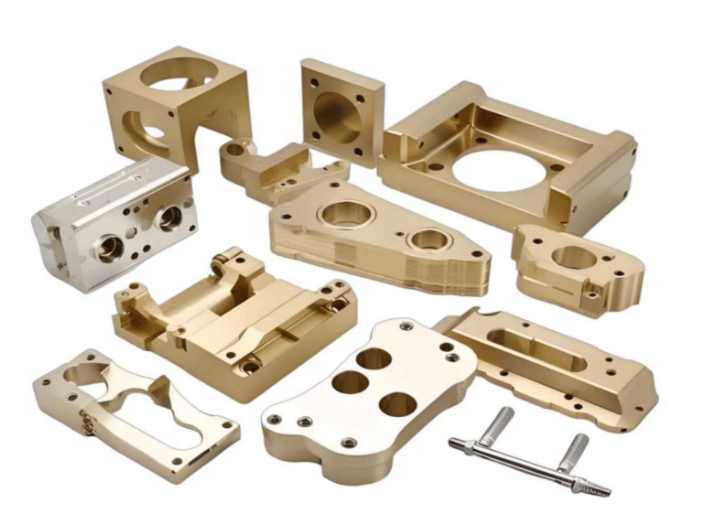

Precision CNC Machined Component 07
Aluminum automotive component with bead-blasted finish.

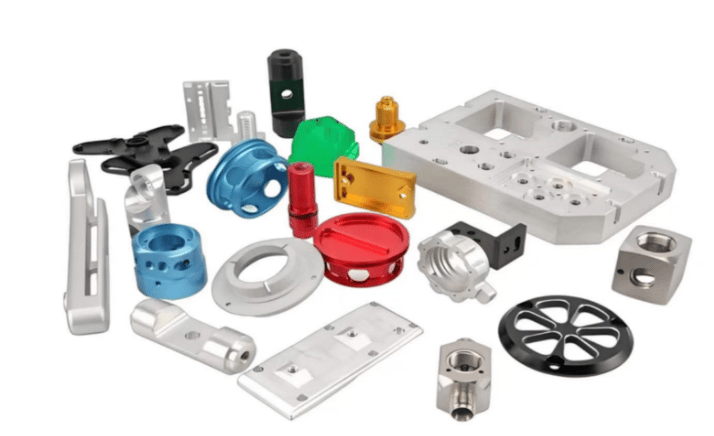

Precision CNC Machined Component 08
Stainless steel industrial fixture, passivated per ASTM A967.

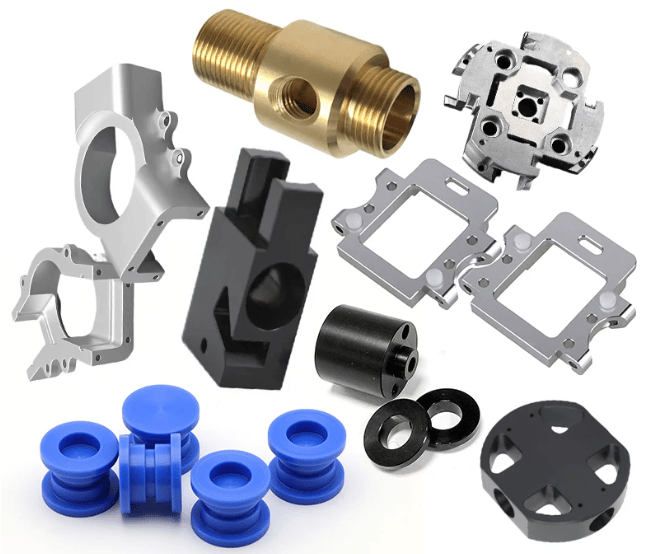

Precision CNC Machined Component 09
Hardened 4140 steel component with combined turning + wire EDM operations.

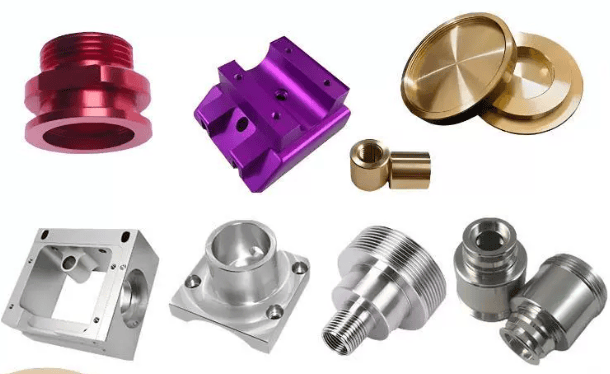

Precision CNC Machined Component 10
Standard prototype aluminum part for robotics integration.

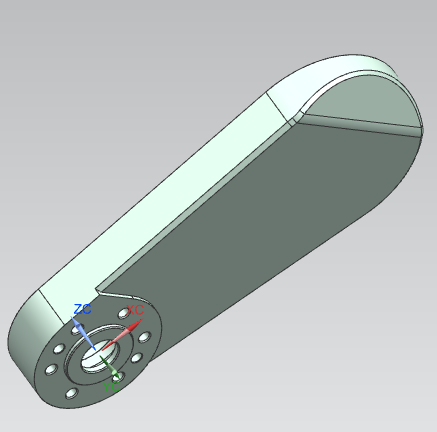

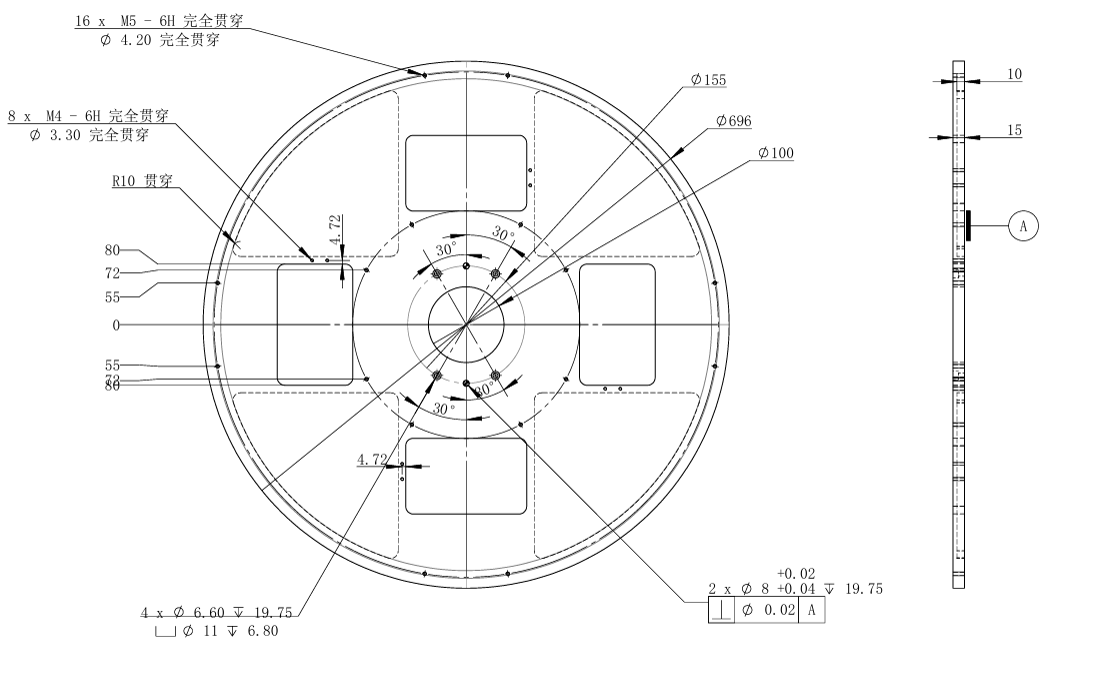

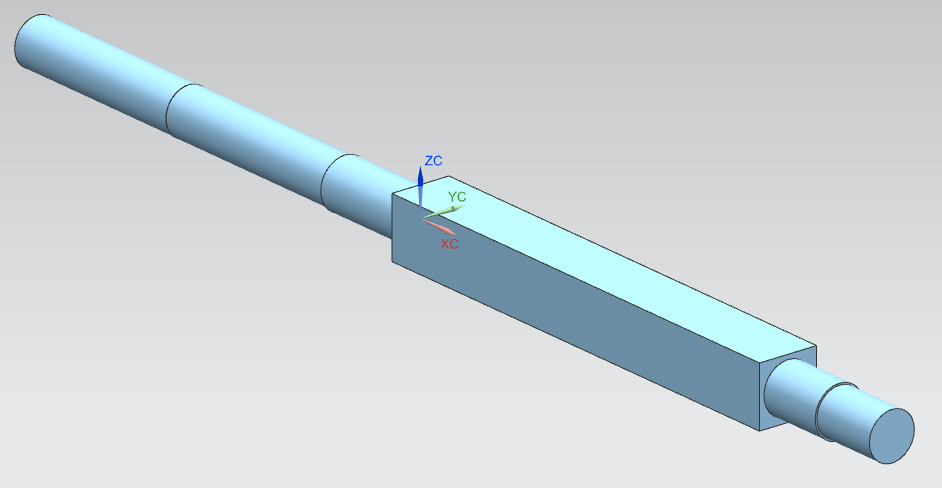

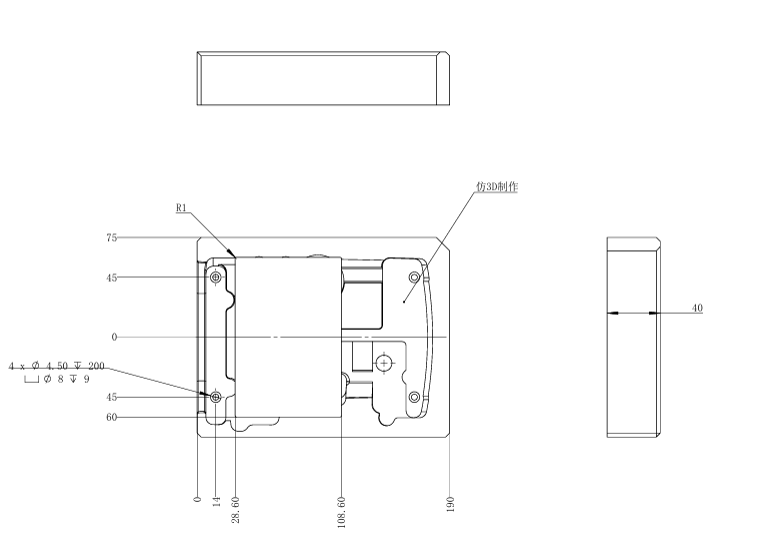

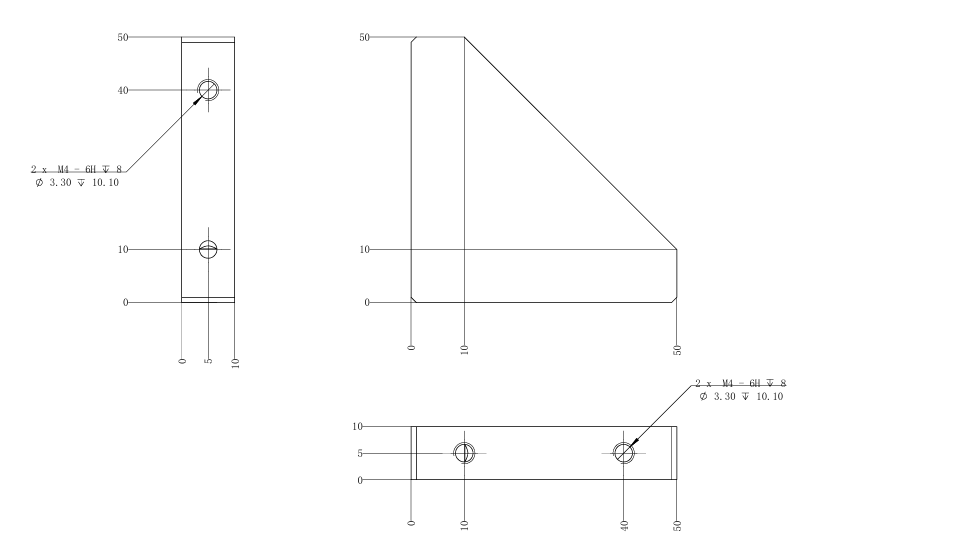

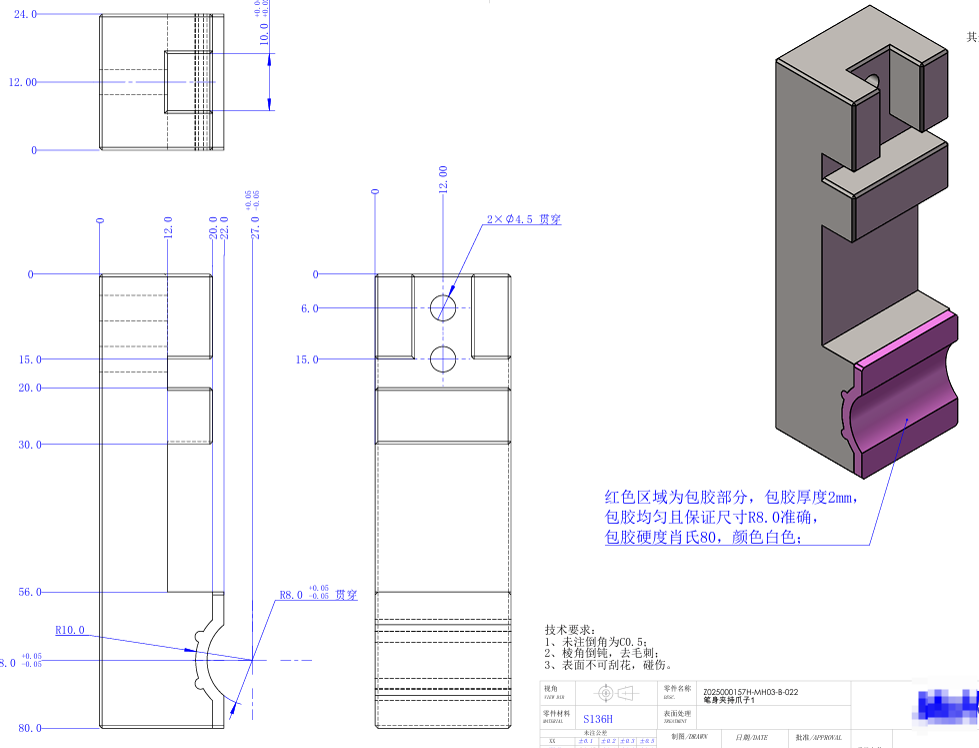

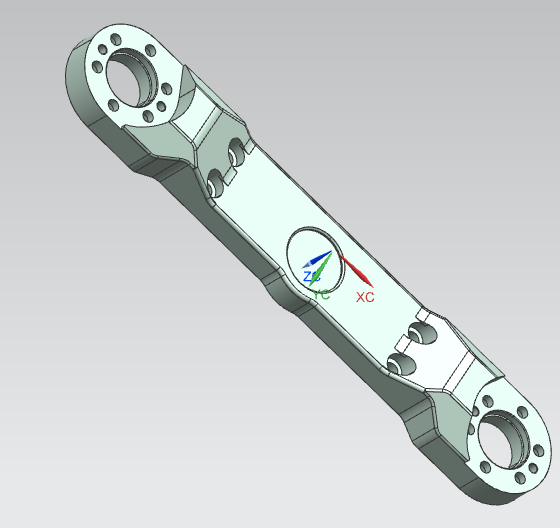

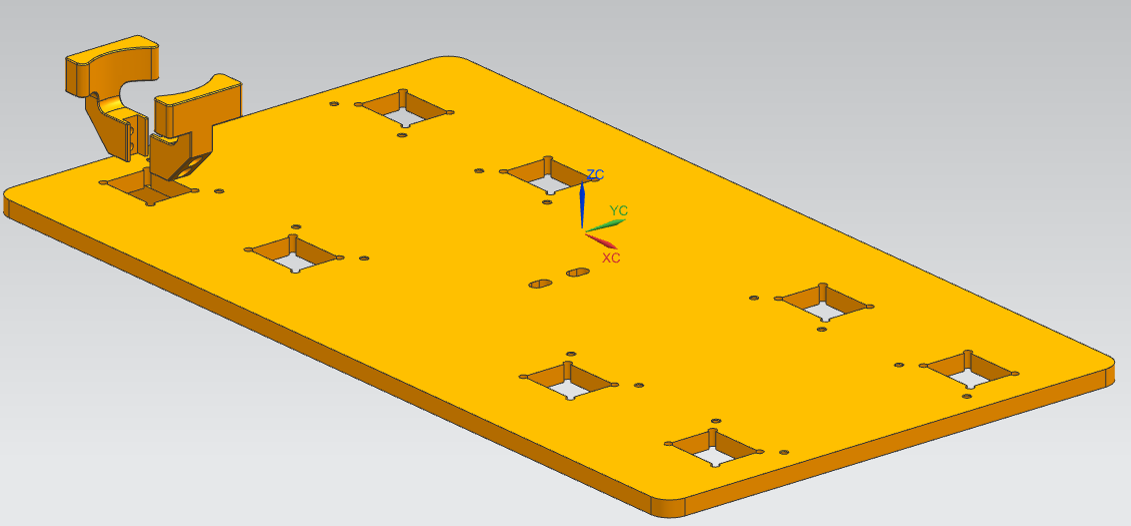

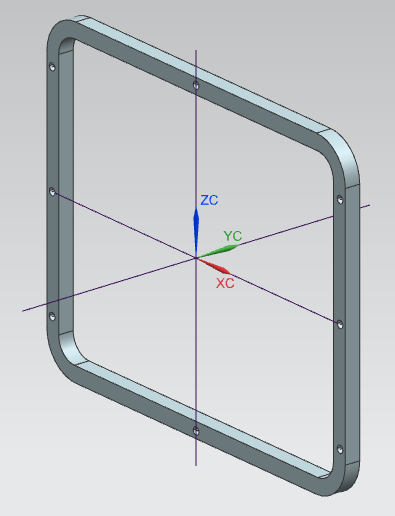

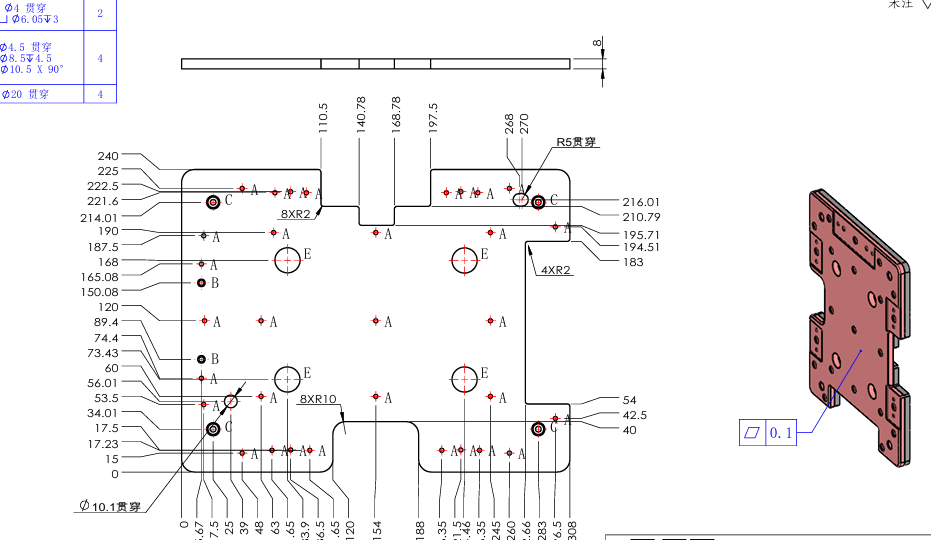

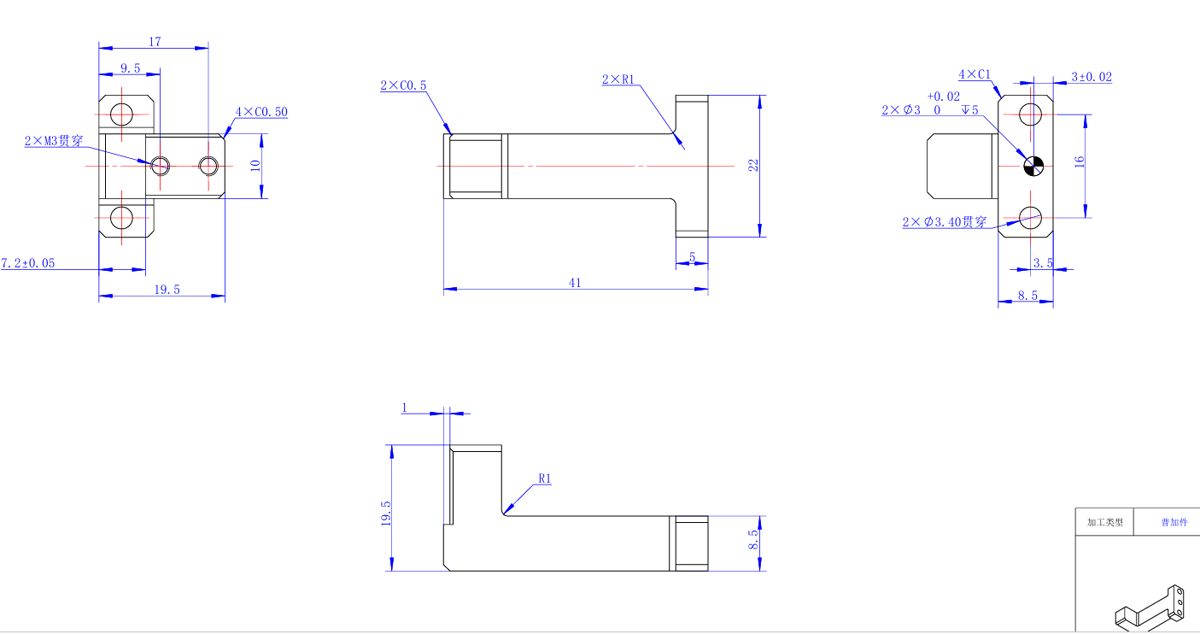

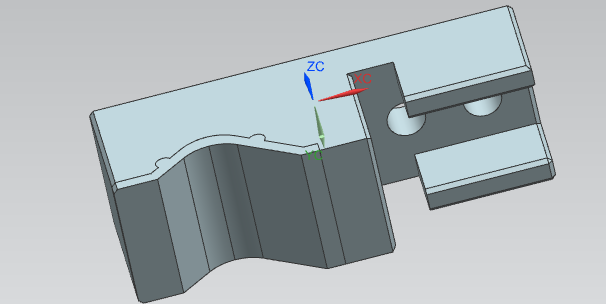

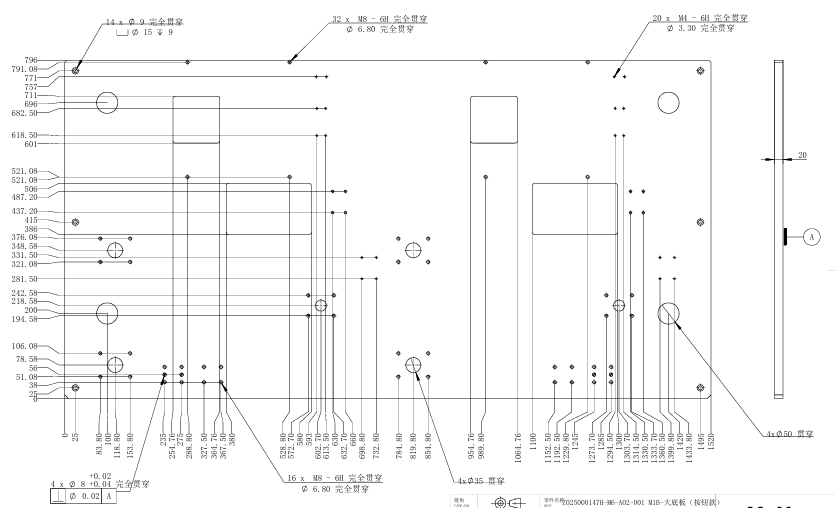

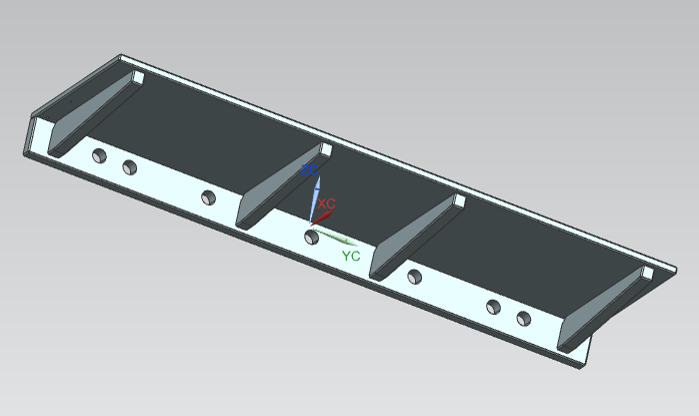

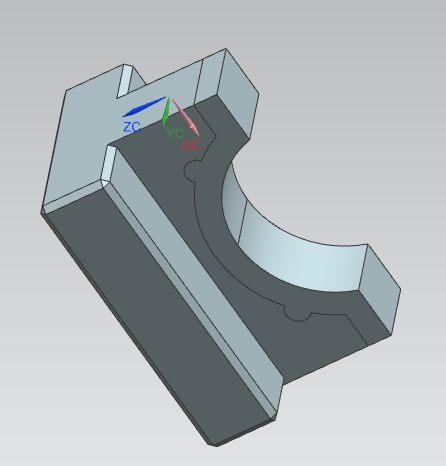

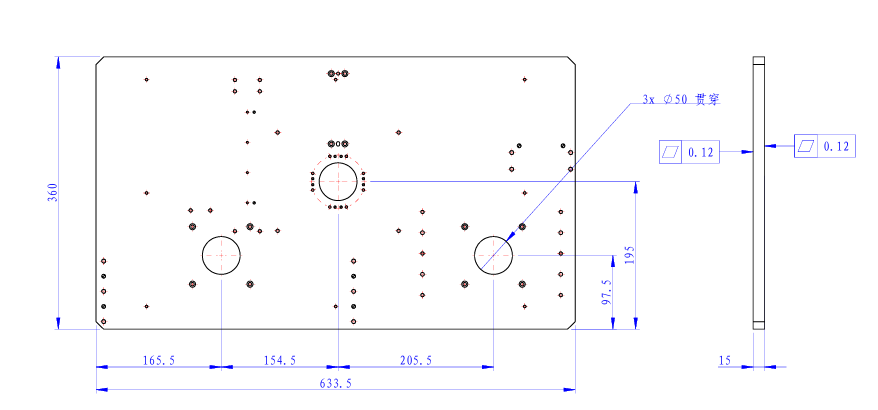

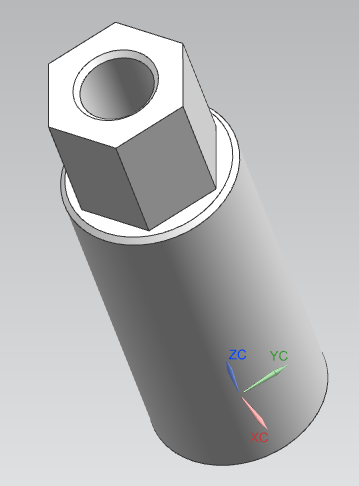

Drawings from the project archive
Forty-one drawings we produced and machined for clients across medical, robotics, aerospace and industrial sectors. Click any drawing to view full size.
More References Available Under NDA
We work with Fortune 500 companies, aerospace OEMs, and medical device manufacturers. Due to confidentiality agreements, we cannot publicly display all projects. Contact us to arrange NDA-protected reference reviews.
Request Industry ReferencesOur Quality Assurance
ISO 9001:2015 Certified
CMM Dimensional Inspection
First Article Inspection (FAI)
Material Certifications Provided
