Servicios de Mecanizado CNC
Del Prototipo a la Producción en Serie
Fresado CNC, torneado CNC, mecanizado de 5 ejes, moldeo por inyección, impresión 3D y chapa metálica — todo bajo un mismo techo en Dongguan, China. Tolerancia ±0,001mm. Presupuesto en 24 horas.
Nuestros Servicios de Fabricación
Capacidades de fabricación de precisión completas — desde el primer prototipo hasta la producción a gran escala con calidad constante.

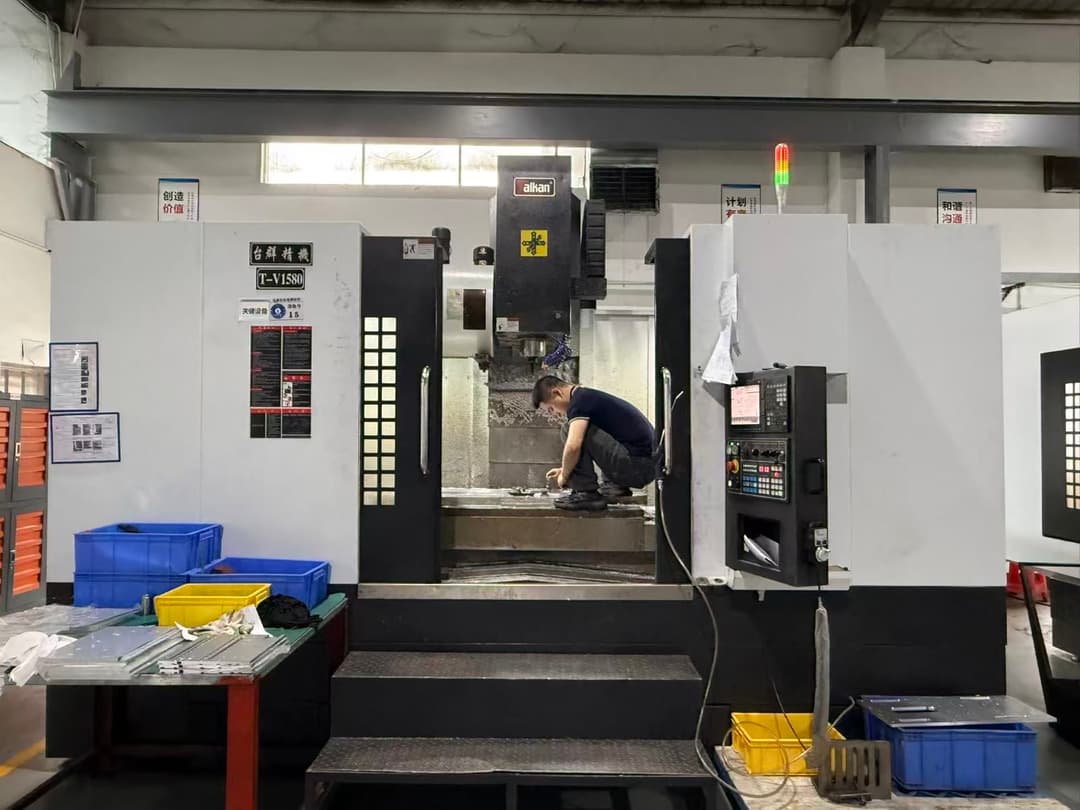

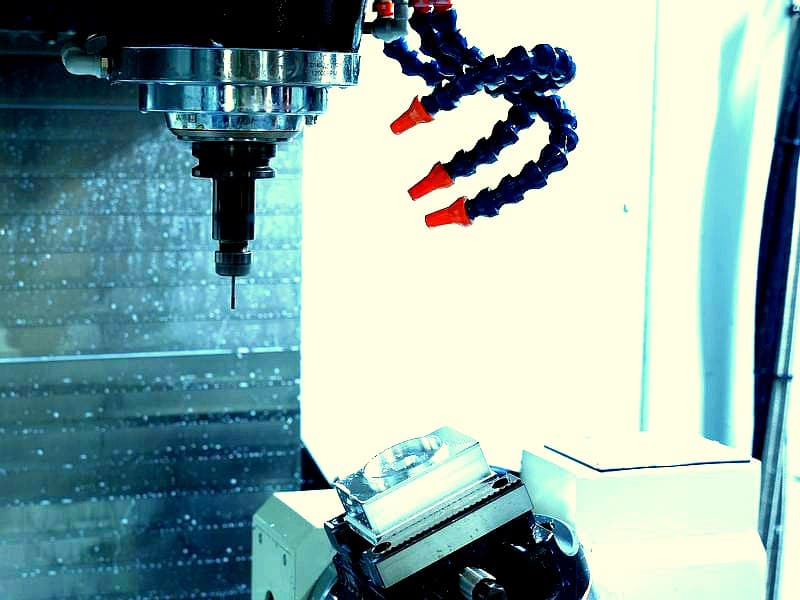

Fresado y Torneado
Mecanizado CNC
From simple 3-axis milling to complex 5-axis simultaneous machining. Our fleet of 200+ CNC machining centers handles everything from single prototypes to 100,000+ unit production runs with tolerances to ±0.001mm.
- 3-axis, 4-axis & 5-axis CNC milling

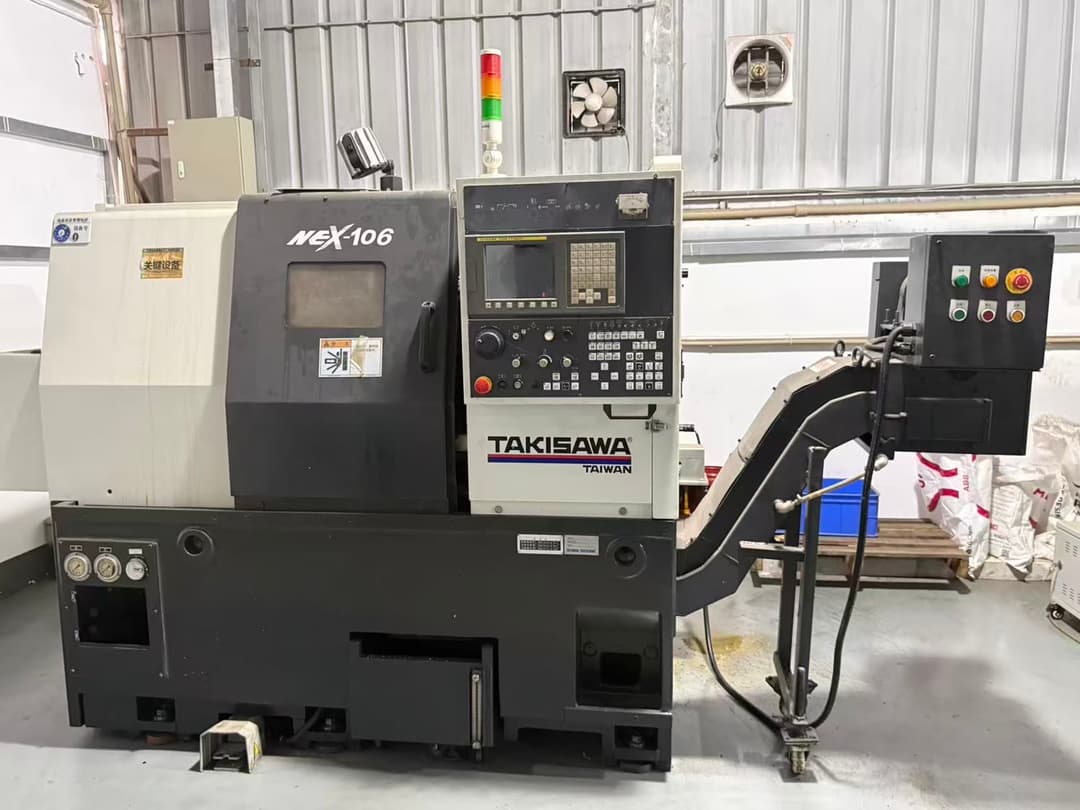

- CNC turning & Swiss-type lathe machining
- Vertical & horizontal machining centers
- Complex surface & contour machining
- Tight tolerances: standard ±0.01mm, precision ±0.001mm
- Max part size: 2000 × 1000 × 800 mm
Piezas Plásticas a Escala
Moldeo por Inyección
Rapid tooling and production injection molding for plastic components. From prototype molds in days to hardened steel production tools for millions of cycles.
- Prototype molds: aluminum & soft steel
- Production molds: P20, H13 hardened steel
- Overmolding & insert molding
- Multi-cavity and family molds
- Shot weights from 1g to 5kg
- Compatible with 100+ thermoplastic materials
Prototipado Rápido
3D Printing
Industrial additive manufacturing for functional prototypes, jigs, fixtures and end-use parts. Multiple technologies for every material and accuracy requirement.
- SLA – high-detail resin parts, Ra 0.8µm
- SLS – strong nylon/glass-filled nylon
- FDM – cost-effective concept models
- MJF – production-grade PA12 parts
- Metal 3D printing – SLM titanium, stainless
- Parts shipped in as fast as 24 hours
Corte, Plegado y Soldadura
Fabricación de Chapa Metálica
Precision sheet metal fabrication from prototype to high-volume production. Laser cutting, CNC punching, bending, welding and powder coating under one roof.
- Laser cutting: up to 25mm steel, 20mm aluminum
- CNC punch press & turret punching
- CNC press brake bending
- TIG / MIG welding & spot welding
- Hardware insertion (PEM fasteners)
- Powder coating, plating & painting
Aesthetic & Functional Coatings
Surface Finishing
Complete in-house post-processing capabilities. Every part leaves our facility with the surface finish your design requires, verified by our quality team.
- Anodizing: Type II (decorative) & Type III (hardcoat)
- Electroplating: nickel, zinc, chrome, gold
- Powder coating: any RAL color
- Passivation for stainless steel
- Sandblasting & bead blasting
- Painting, silk-screen printing & laser engraving
Complete Sub-Assemblies
Assembly Services
Save time and shipping costs with our assembly services. We source standard components, assemble your parts and deliver ready-to-use sub-assemblies.
- Mechanical assembly & fastener insertion
- PCB assembly integration
- Quality testing before shipment
- Custom packaging & labelling
- Kitting and bagging
- Consolidate your supply chain
Productos & Equipos Especializados
Más allá de los servicios de mecanizado CNC, Ginwate diseña y fabrica equipos de automatización no estándar para las industrias electrónica y semiconductora.
Componentes de Transmisión de Precisión
Composed of various transmission elements — shafts, shaft systems, brakes, clutches, reversing and energy storage components. Achieves power and motion transmission, operated manually or electrically to change working state and parameters of power machines or transmission systems.
Máquina Cinta de Desmontaje Automático
Automatically transfers ICs from Reel reels to Tube tubes, separating the carrier film and placing components into the correct Tube. Enables high-efficiency, high-accuracy semiconductor product testing processes. Custom designed for each client's production requirements.
Soporte de Prueba de Chips
Precision fixtures comprising a support frame, testing seat, connector and circuit board. The testing seat holds a chip for functionality verification, the support frame fixes the seat, the connector links to the circuit board, and the board simulates the chip's working state for accurate testing.
Retrofit de Canal de Flujo de Molde de Inyección
Adding diversion channels creates a smooth transition zone between the main channel and sprue, ensuring even plastic flow distribution across multi-cavity molds. Since 2006, we have successfully retrofitted 300+ injection mold sets per year, significantly improving our customers' production efficiency.
Actualización Robot Carga / Descarga Obleas
Wafer handling was previously highly manual, prone to errors and inefficient. We design and upgrade precision wafer loading/unloading equipment using automation engineering, replacing manual handling with robotic solutions. We have successfully upgraded numerous production lines, greatly improving accuracy and throughput.
Caja de Material para Chips
Multifunctional precision material boxes for pre-packaging semiconductor chips. Beyond basic storage and transport, these boxes integrate cleaning, disinfection and metering functions to meet diverse requirements throughout the semiconductor chip manufacturing process.
Materiales que Mecanizamos
Mecanizamos 50+ metales y plásticos de ingeniería. Si no ve su material, contáctenos.
MMetales & Aleaciones
PPlásticos de Ingeniería
Formatos de Archivo Aceptados
Suba sus archivos CAD en cualquier formato estándar. Nuestros ingenieros revisan cada archivo para DFM sin costo.
¿No tiene un archivo 3D? Un dibujo 2D detallado (PDF o DXF) es suficiente para obtener presupuesto.
¿Listo para empezar?
Suba sus archivos y obtenga un presupuesto detallado de nuestro equipo de ingeniería en 24 horas — análisis DFM gratuito incluido.
Sin cantidad mínima de pedido. Prototipos individuales bienvenidos.
